The Science Behind Natural Hydrogen
How Does Natural Hydrogen Form?
Natural hydrogen forms through subsurface geology, not industrial production. In the right settings, groundwater moves through fractures and reaches iron-rich rock. When that water reacts with iron-bearing minerals, the minerals transform and hydrogen can be released as H₂ gas.
That gas then has to move through the subsurface, accumulate in the right geologic setting, and be evaluated before it can be responsibly accessed. Formation is the first step, but accumulation is what can turn natural hydrogen into a meaningful resource.
What a Natural Hydrogen System Looks Like
Natural hydrogen is not created by a single isolated event. It is the result of a geologic system. For hydrogen to form and accumulate underground, the subsurface needs the right combination of rock, water, pathways, and trapping conditions. If any part of that system is missing, hydrogen may not form in meaningful quantities, may escape, or may never accumulate in a way that can be found or studied.
The Four Conditions Required for a Natural Hydrogen System

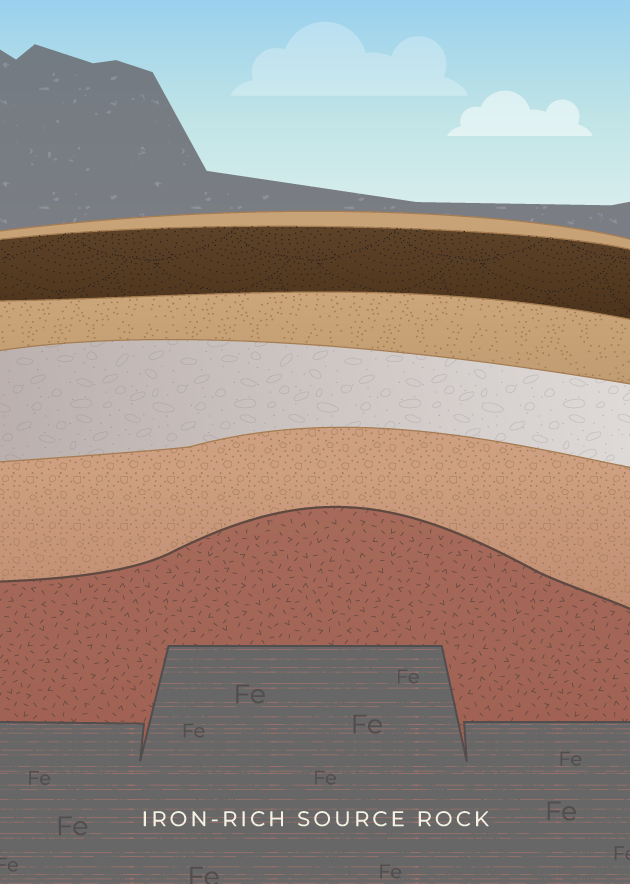

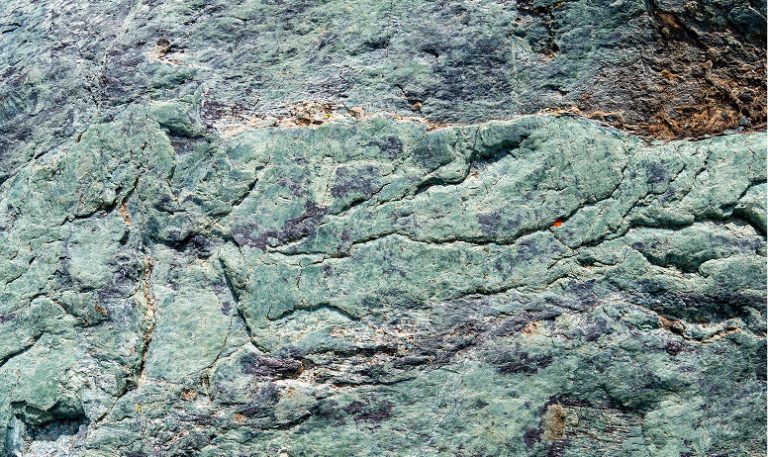

Hydrogen source rock

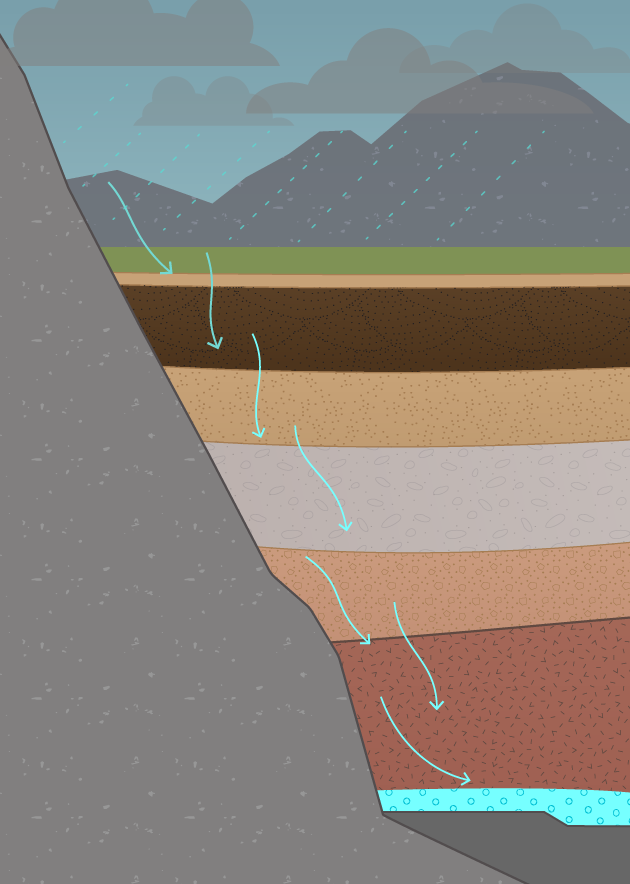

Groundwater

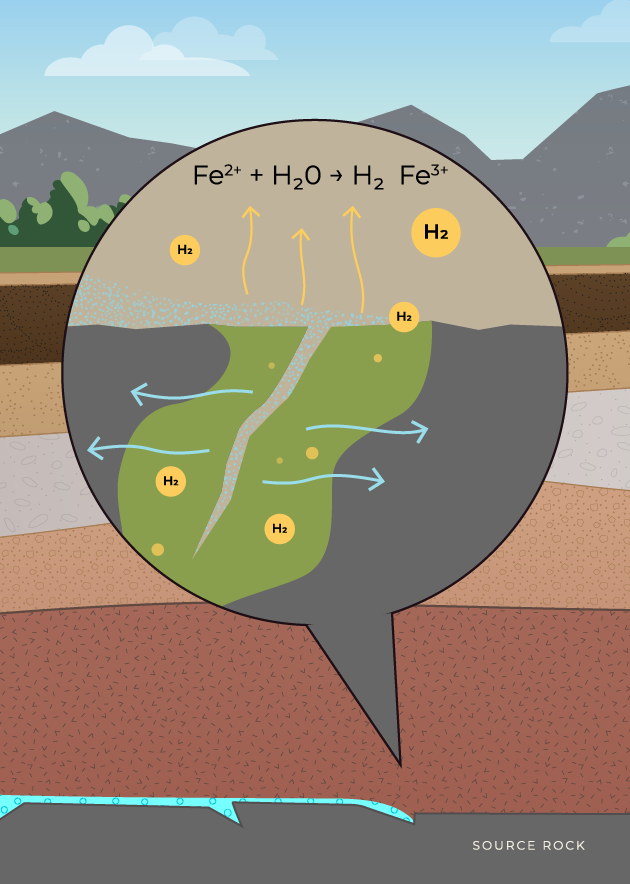

Reaction conditions

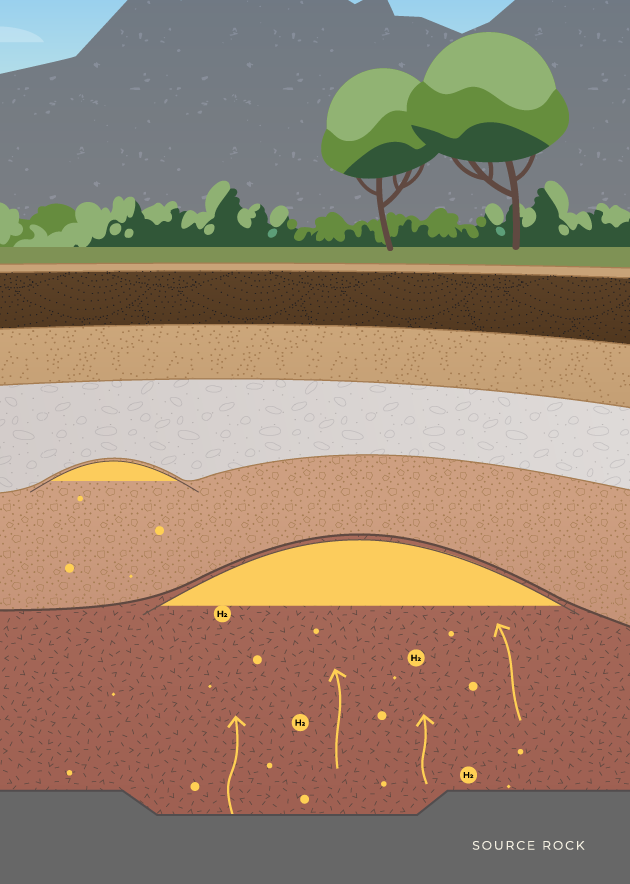

Trap or reservoir
What is serpentinization?
Serpentinization is one of the key reactions that can generate natural hydrogen underground. In this process, water reacts with iron-bearing minerals such as olivine and pyroxene. As those minerals transform into serpentine, hydrogen gas can be produced. In practical terms, serpentinization is geology doing work underground. When the right rock and water meet, the reaction can release hydrogen gas.

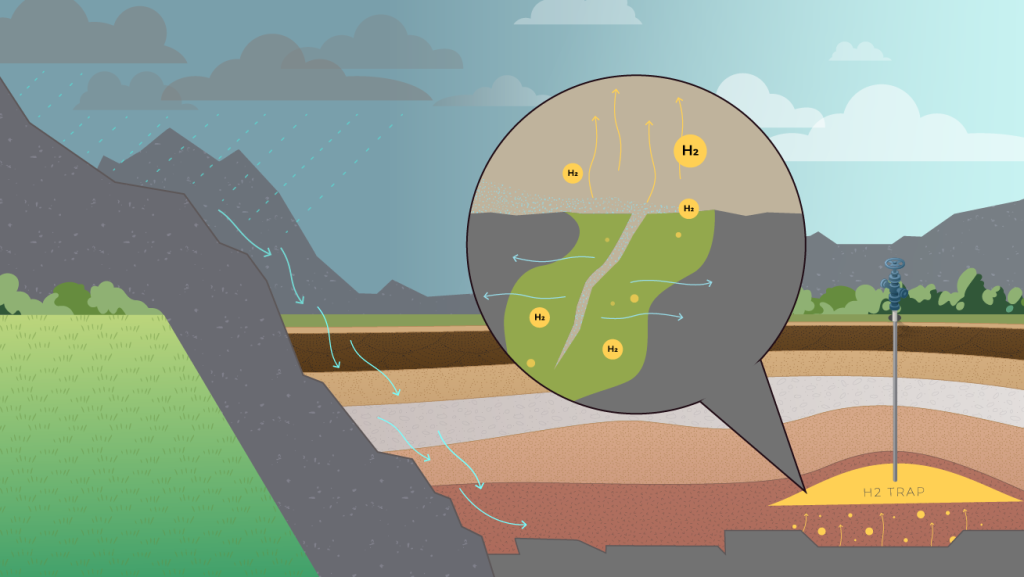

From Source Rock to Hydrogen Trap
Natural hydrogen systems form over geologic time. The process begins before hydrogen is generated, with the formation and shaping of iron-rich source rock. It continues as groundwater moves through the subsurface, reacts with minerals, generates hydrogen gas, and creates the conditions for that gas to migrate and accumulate.
The science is easiest to understand in three phases. First, the source rock system forms; next, water-rock reactions generate hydrogen; then hydrogen moves through the subsurface and may become trapped underground.
Phase 1: Build the source rock system
Before hydrogen can form, the right rock has to exist. This phase explains how iron-rich source rock forms, becomes buried, and is shaped by geologic forces that later influence water movement and hydrogen trapping.

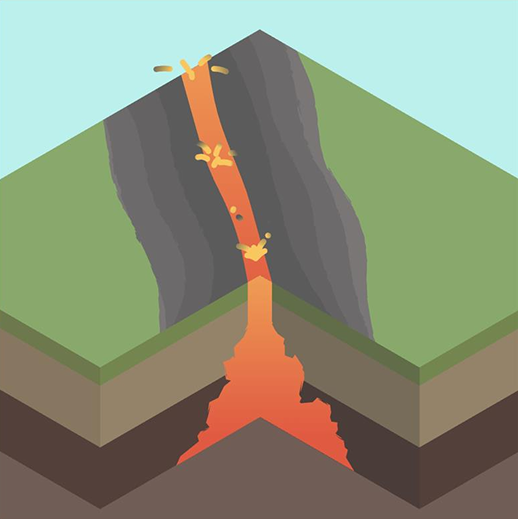

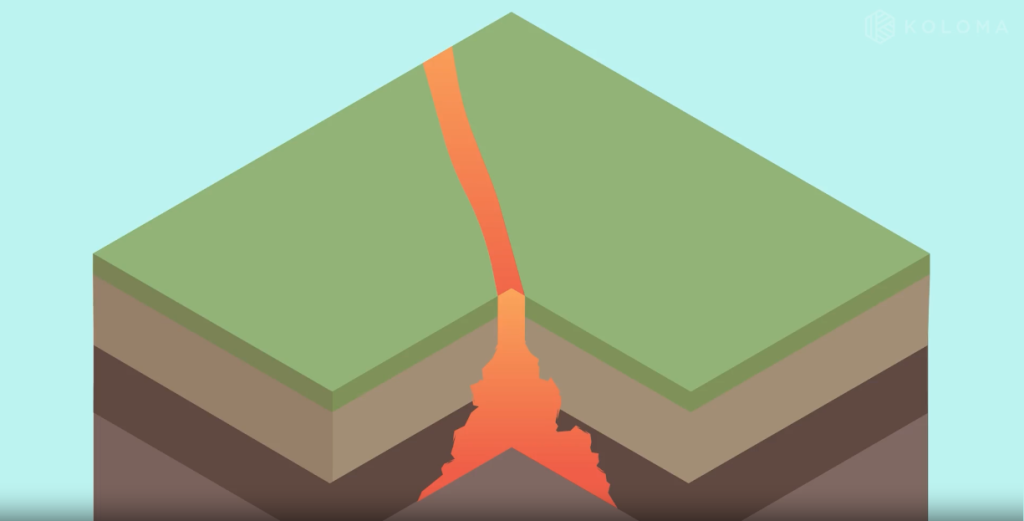

Emplacement
Iron-rich rock forms when magma intrudes into existing rock layers. This source rock becomes the foundation for hydrogen generation.

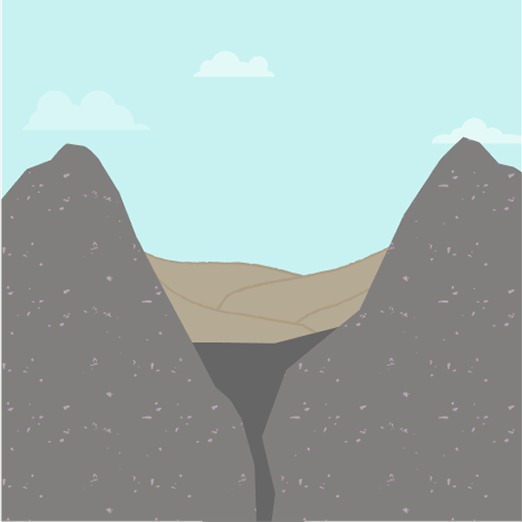

Burial
Over time, sediments accumulate and harden above the source rock. Burial helps preserve the system and creates overlying rock layers that may later play a role in trapping hydrogen.

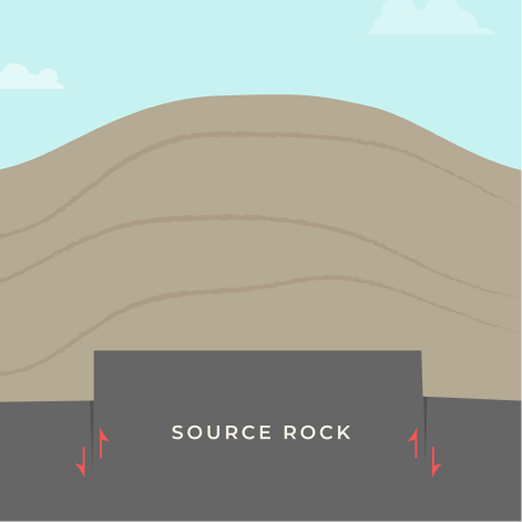

Deformation
Tectonic forces uplift and break the buried source rock, while overlying sediment layers bend into dome-like structures. These structures can later help shape how hydrogen moves and where it may accumulate.
Phase 2: Generate hydrogen
Once the source rock system is in place, water has to reach the right minerals. This phase explains how groundwater moves through the subsurface and creates the conditions for hydrogen generation.

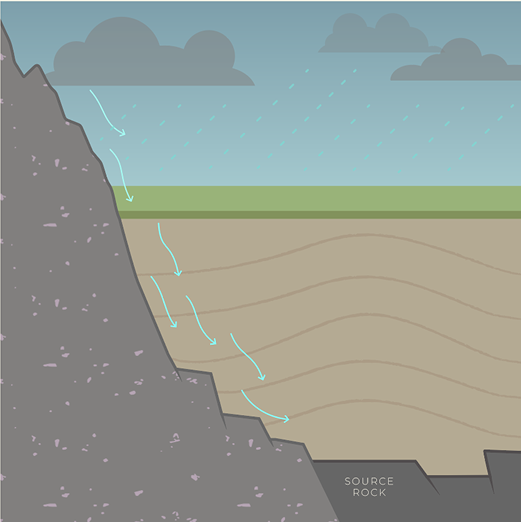

Infiltration
Groundwater seeps deep underground along fractures and faults, reaching the hydrogen-rich source rock. These pathways matter because they bring water into contact with the minerals that can support hydrogen generation.

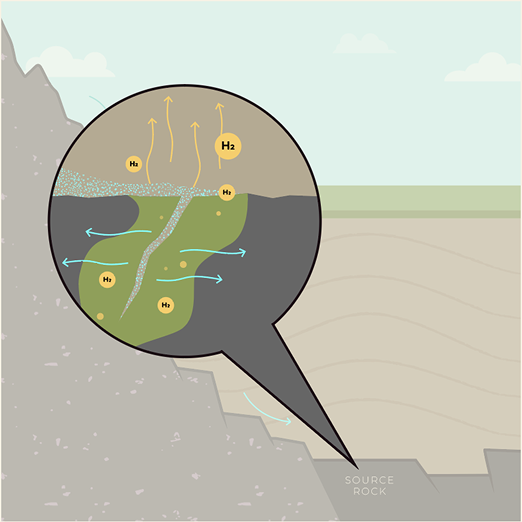

Serpentinization
Water reacts with iron-bearing minerals in the source rock, generating hydrogen gas. This is the key reaction step, but it only becomes part of a natural hydrogen system when the gas can move and accumulate.
Phase 3: Move and trap hydrogen
Finding natural hydrogen means looking for a full geologic system, not just one signal. Scientists need to identify where hydrogen source rock may exist, where groundwater may have interacted with that rock, where migration pathways may have formed, and where traps may have allowed hydrogen to accumulate.

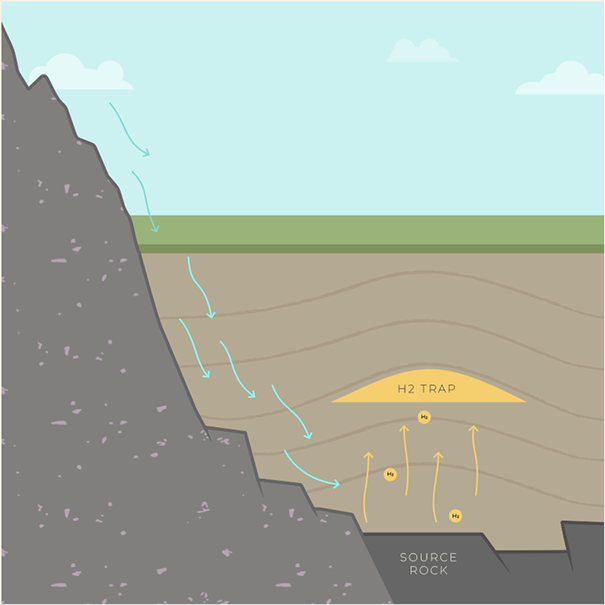

Hydrogen Trap Forms
Hydrogen migrates upward through fractures until it is caught beneath dome-shaped rock formations, creating a natural underground accumulation. This trapping step is what turns hydrogen generation into a potential resource.
How Is Natural Hydrogen Found
Finding natural hydrogen means looking for a full geologic system, not just one signal. Scientists need to identify where hydrogen source rock may exist, where groundwater may have interacted with that rock, where migration pathways may have formed, and where traps may have allowed hydrogen to accumulate.

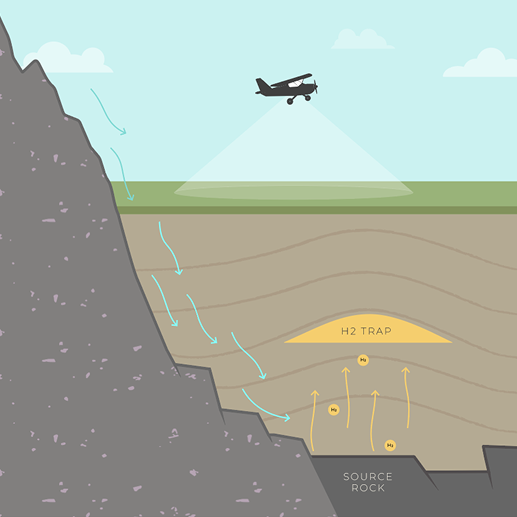

Airborne Survey
Aerial surveys over large areas help identify regions with hydrogen source rock. This gives scientists a way to narrow the search before moving into more focused fieldwork.

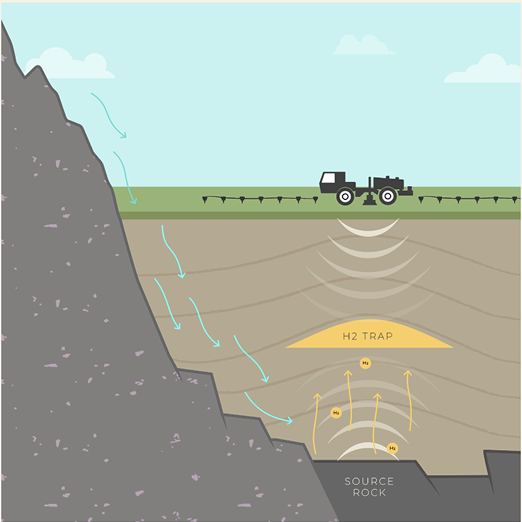

Geophysical Survey
Focused studies over smaller areas help reveal underground structures where hydrogen may be trapped. These surveys help scientists understand what lies beneath the surface before making drilling decisions.

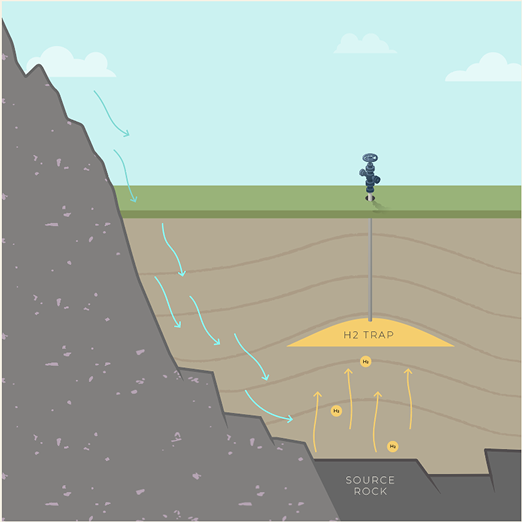

Accessing the Hydrogen
A well can be drilled to access a hydrogen reservoir safely and efficiently. This step helps confirm whether a promising subsurface system contains hydrogen in a way that can be evaluated for responsible development.
Surveys and Samples Confirm the System
Natural hydrogen systems are complex. No single dataset tells the whole story. Surveys help scientists understand what may be happening underground before and between drilling decisions. Sample analysis helps confirm whether the right rock, fluids, gases, and subsurface conditions are present. Together, they help answer the most important science questions.
- Is there hydrogen source rock?
- Could water-rock reactions have generated hydrogen?
- Are there pathways for hydrogen to move?
- Are there structures where hydrogen could accumulate?
- Is there evidence that hydrogen is present?
What surveys can show
Different survey methods help scientists understand different parts of the subsurface. These methods do not replace drilling or sample analysis. They help scientists make better decisions about where further evaluation may be warranted.

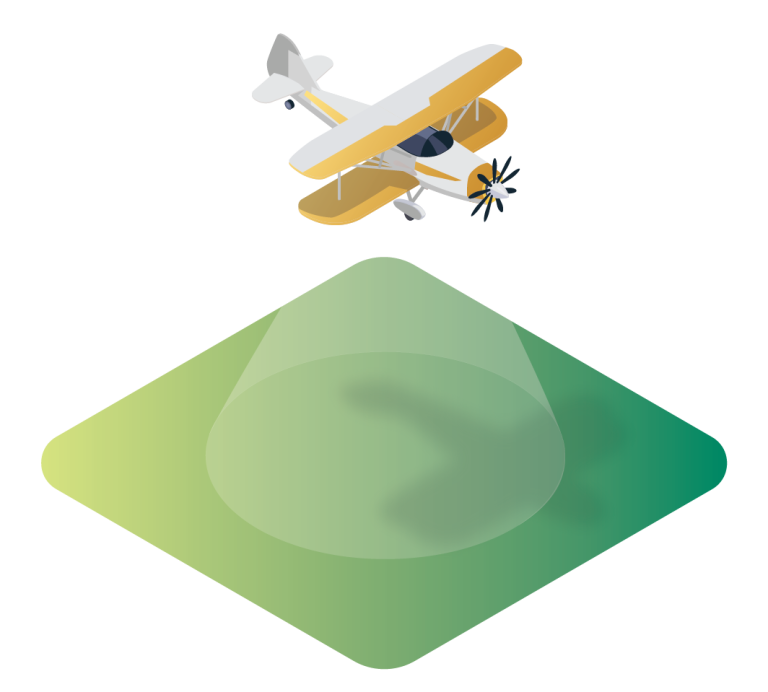

Airborne Gravity & Magnetics
Airborne Gravity & Magnetics

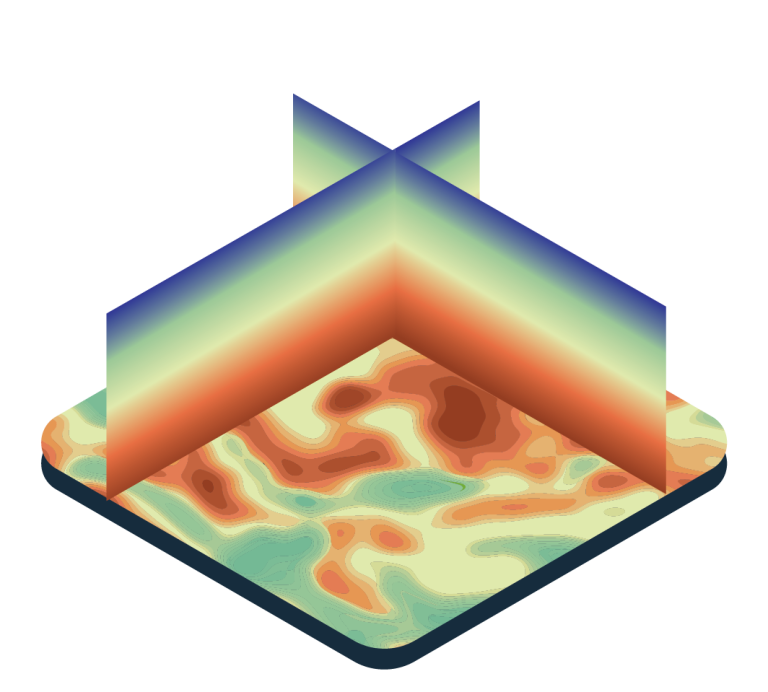

Passive Acoustic Survey
Passive Acoustic Survey

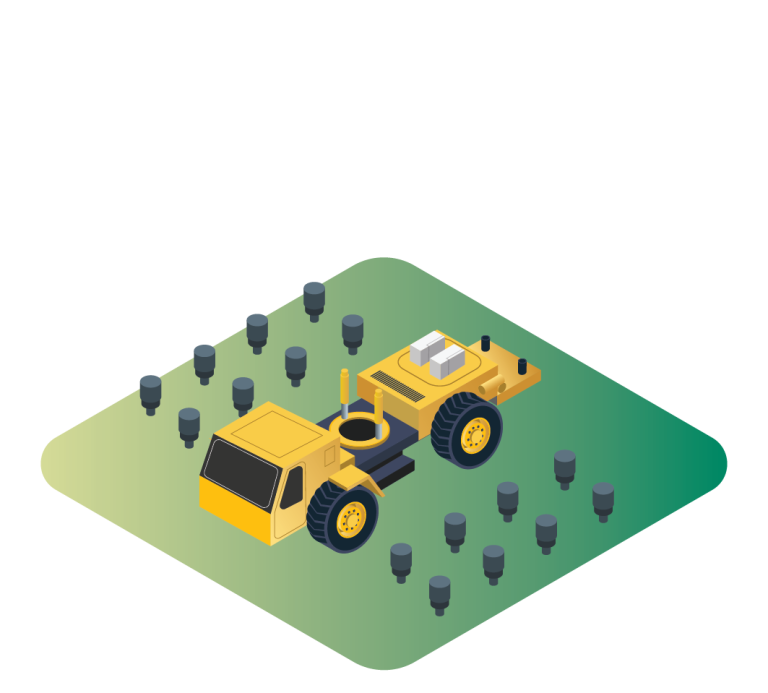

Active Acoustic Surveys
Active Acoustic Surveys

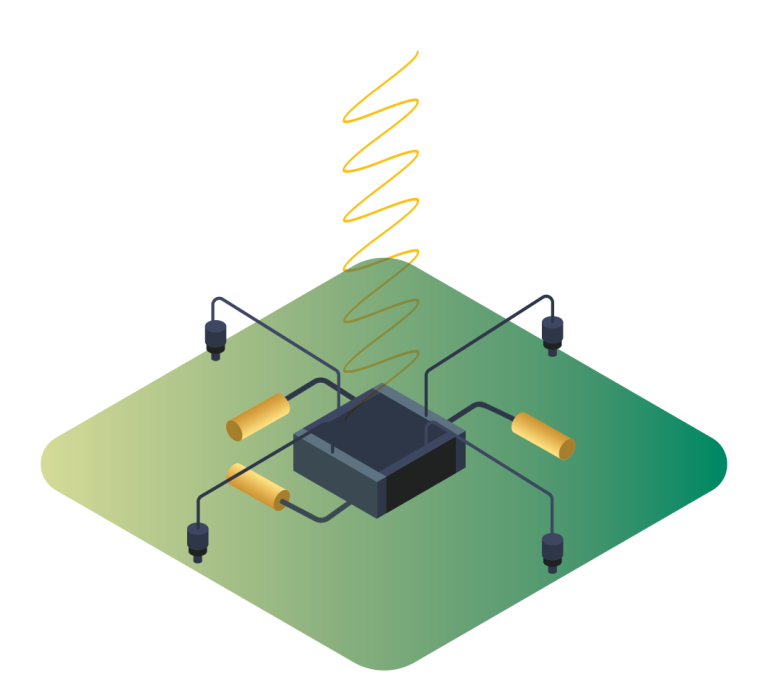

Magnetotellurics
Magnetotellurics:
Why samples matter
Rock, liquid, and gas samples help scientists understand whether the right conditions exist for hydrogen generation, migration, and accumulation.

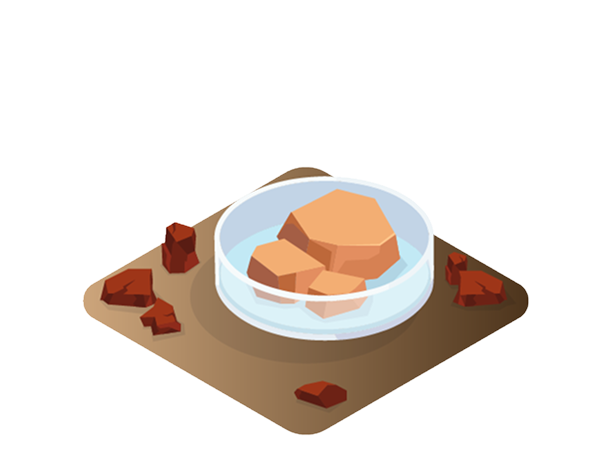

Rock samples
Can reveal mineralogy, chemistry, physical properties, and hydrogen generation potential.

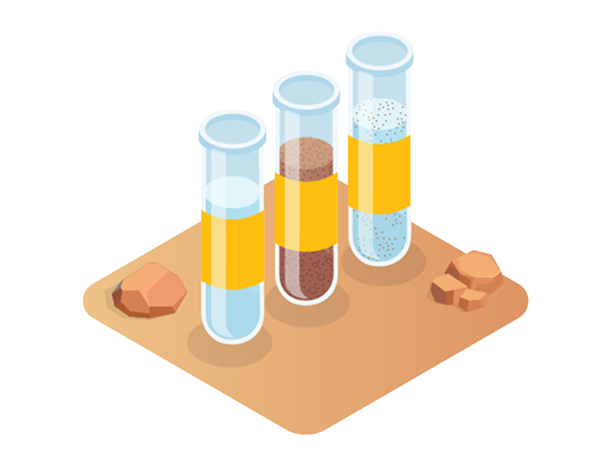

Liquid samples
Can help scientists understand groundwater chemistry, fluid origins, and water-rock interactions.

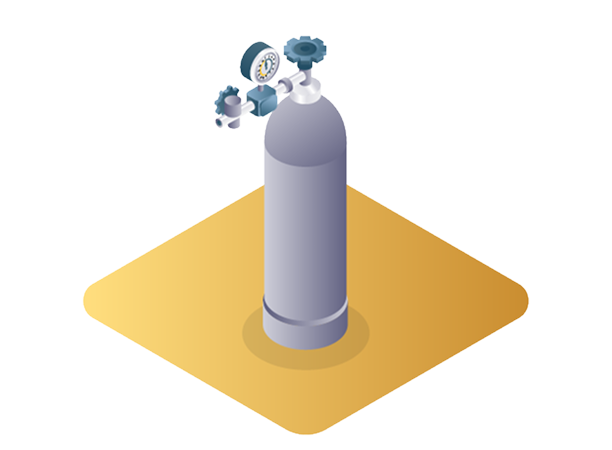

Gas samples
Can help identify hydrogen presence, gas history, origin, and migration clues.
What the Science Helps Clarify
Understanding the science behind natural hydrogen helps separate the resource from terms, assumptions, or shortcuts that can blur what makes it different.
Hydrogen formation is not the same as accumulation.
Hydrogen can form underground without becoming a resource. It must also migrate and accumulate in a geologic setting that can be found and evaluated.
A reservoir is not just “hydrogen anywhere underground.”
A natural hydrogen reservoir depends on the right combination of generation, migration, trapping, and preservation.
Natural hydrogen is more than a color label.
It may be called white or gold hydrogen in some contexts, but color labels do not explain the science behind natural hydrogen. The more important distinction is the underground system that naturally generates, moves, and traps hydrogen.

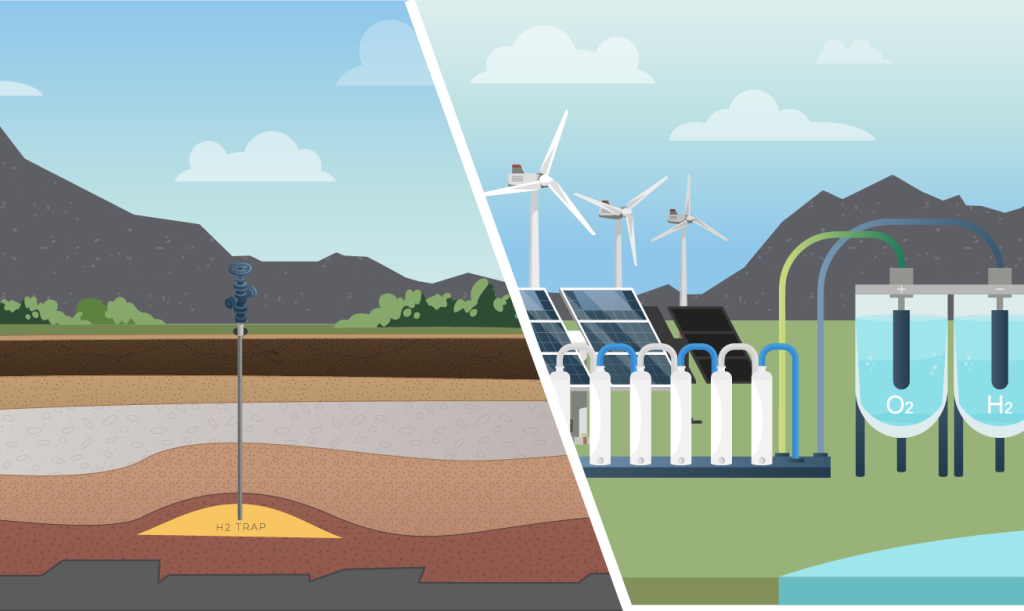

Natural hydrogen is not green hydrogen.
Green hydrogen is manufactured through electrolysis. Natural hydrogen forms underground through geologic processes.
Why the Science Matters
Natural hydrogen is exciting because the science changes the starting point. Instead of asking how to manufacture hydrogen from another input, the questions become: Where has the earth generated hydrogen, where has it accumulated, and how can it be responsibly accessed?
That’s why the details matter. Source rock, groundwater, serpentinization, migration pathways, traps, surveys, test wells, and lab analysis are not just technical terms. They’re the building blocks of a new energy exploration discipline.
Once that science is understood, the energy opportunity becomes clearer. Natural hydrogen changes what clean hydrogen requires, from production inputs and infrastructure to cost, carbon potential, and scale.
FAQs
How does natural hydrogen form?
Natural hydrogen forms underground when water interacts with iron-rich rocks under the right geologic conditions. Serpentinization is one of the key reactions that makes this possible: Water reacts with minerals such as olivine and pyroxene, the rock changes, and hydrogen gas can be released.
What is serpentinization?
Serpentinization is a natural water-rock reaction. When groundwater reacts with certain iron-bearing minerals, those minerals can transform into serpentine and produce hydrogen gas.
What is hydrogen source rock?
Hydrogen source rock is rock with the mineral composition needed to support hydrogen generation. Iron-rich source rock forms the foundation for natural hydrogen generation.
How does natural hydrogen become trapped underground?
After hydrogen forms, it can migrate through cracks, pores, fractures, and faults. In the right geologic setting, it may become trapped beneath formations that limit further movement, creating an underground accumulation.
How do scientists find natural hydrogen?
Scientists look for geologic systems with source rock, water-rock reaction potential, migration pathways, and possible traps. They use geologic data, geophysical surveys, test wells, sample analysis, and exploration wells to evaluate whether hydrogen may be present.
Is natural hydrogen the same as green hydrogen?
No. Green hydrogen is manufactured through electrolysis. Natural hydrogen forms underground through geologic processes and is accessed through exploration and production.
